Besides the technology and design, there are a number of Advantages that set our li-fe street light solutions apart from The competition.

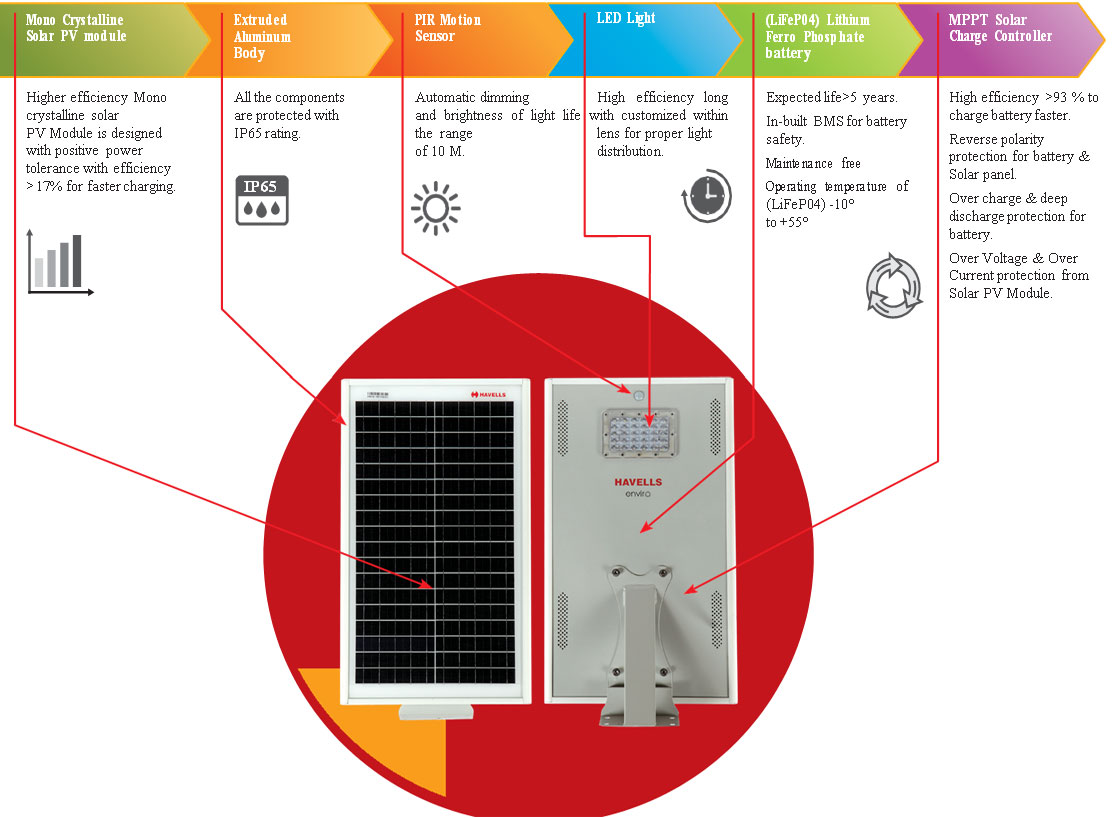

Solar Luminaire – Benefits
High Power LED delivers system lumen output > 120 Lm/ W. This minimizes size of solar panel and battery thereby reducing overall system cost.
Optical lens as per road lighting standards
Aluminum pressure die casting & IP 66 Protection from dust and water
Green LED indication for solar charging. Red LED indication for battery low
Inbuilt MPPT Solar Charge controller to Extract maximum power from PV module
Charging algorithm specially designed for lifepo4 battery to ensure efficient battery charging & longer life.
Automatic Dusk to Dawn operation
| SL.No | Fg Code | System Voltage | Luminaire Wattage | Lumen/Watt | Solar Charge Controller | Solar PV Module (Wp) | Battery(Ah)- Lifepo4 | Backup | Hot dip galvanized tubular pole above ground | Bluetooth connectivity |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | LHSTAKU7AAND007 | 12V | 7W | 120 | MPPT | 40Wp | 12.8V 10Ah | 2 days | 4M TUB Pole | Optional |
| 2 | LHSTAKU7AANI012 | 12V | 12W | 120 | MPPT | 40Wp | 12.8V 20Ah | 2 days | 5M TUB Pole | Optional |
| 3 | LHSTANU7AANI015 | 12V | 15W | 120 | MPPT | 50Wp | 12.8V 25Ah | 2 days | 5M TUB Pole | Optional |
| 4 | LHSTARU7AANI020 | 12V | 20W | 120 | MPPT | 75Wp | 12.8V 30Ah | 2 days | 5M TUB Pole | Optional |
| 5 | LHSTARU7AANI024 | 12V | 24W | 120 | MPPT | 80Wp | 12.8V 35Ah | 2 days | 5M TUB Pole | Optional |
| 6 | LHSTAKU7AANI012 | 12V | 30W | 120 | MPPT | 100Wp | 12.8V 45Ah | 2 days | 5M TUB Pole | Optional |
| Model No. | LHSTAKU7CBAF 007 | LHSTAKU7CBAF 009 | LHSTAKU7CBAF 012 | LHSTAKU7CBAF 015 | LHSTAKU7CBAF 018 | LHSTAKU7CBAF 020 | LHSTAKU7CBAF 024 | LHSTAKU7CBAF 030 |
|---|---|---|---|---|---|---|---|---|
| Solar panel | 20 W | 20 W | 30 W | 40 W | 40 W | 50 W | 60 W | 70 W |
| LED power | 7 W | 9 W | 12 W | 15 W | 18 W | 20 W | 24 W | 30 W |
| Battery capacity | 10.5 Ah | 10.5 Ah | 14 Ah | 18 Ah | 21 Ah | 24 Ah | 30 Ah | 36 Ah |
| Lumen(LM) | 945lm | 1150lm | 1500lm | 2000lm | 2300lm | 2650lm | 3120lm | 3800lm |
| LED life time | 50000hrs | 50000hrs | 50000hrs | 50000hrs | 50000hrs | 50000hrs | 50000hrs | 50000hrs |
| Viewing angle | 120° | 120° | 120° | 120° | 120° | 120° | 120° | 120° |
| Charging time | 1 day | 1 day | 1 day | 1 day | 1 day | 1 day | 1 day | 1 day |
| Autonomy | 2 days | 2 days | 2 days | 2 days | 2 days | 2 days | 2 days | 2 days |
| CCT(K) | 5700K | 5700K | 5700K | 5700K | 5700K | 5700K | 5700K | 5700K |
| Mounting height | 4m | 4m | 5m | 5m | 5-6m | 5-6m | 5-6m | 5-6m |
| Working temp | -10-+55C | -10-+55C | -10-+55C | -10-+55C | -10-+55C | -10-+55C | -10-+55C | -10-+55C |
| Dimension(mm) | 450*382*55 | 450*382*55 | 656*382*55 | 791*382*55 | 791*382*55 | 1026*382*55 | 1230*382*55 | 1320*382*55 |
| Net weight | 8.0KG | 8.4KG | 9.0KG | 11.0Kg | 11.5 Kg | 16.5 Kg | 18.5 Kg | 19 Kg |
